Quartz Infrared, Inc.

Manufacturers of Quartz Infrared Electric Heating Elements

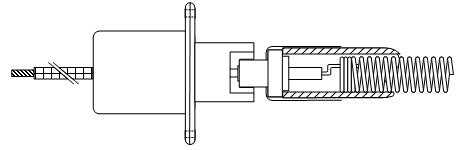

1/2 Inch Insert Cap


Cap Dimensions

Spring Socket


Lead Wires

#6 Stud

Construction limits*

Max (S-S) Length

 51" Clear

Min (S-S) Length


Min (CE) Cold End


Max Watt Density

 60 watts/inch

* Varies with termination

Note: This cap can only be used with clear tubing; SS Clips Optional.

All dimensions are in inches.

Standard models

Insert Cap
Insert Cap
Insert Cap and Lead Wire
Insert Cap and Lead Wire
Insert Cap and Stud
Insert Cap and Stud
